what is plastic pipe fitting mould?
Published on ：2020-08-15

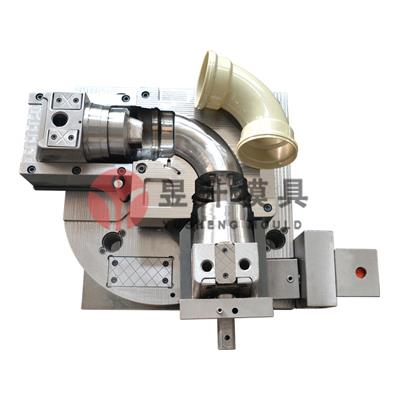

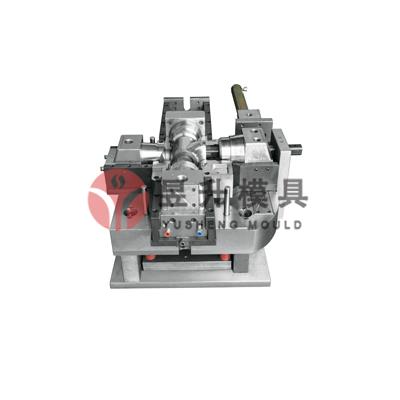

Pipe fitting mould is a kind of mould used to make various shapes of pipe fitting products, and it is a matching tool used to shape pipe raw materials in the injection processing industry. The pipe fitting mould is a tool that can give the pipe fitting product a complete configuration and precise size. Due to the wide variety of pipe fittings and processing methods, the structure of pipe fitting forming machines and pipe fitting products is complex and simple, and the types and structures are also diverse.
One of the plastic pipe fitting moulds can be used for compression moulding, extrusion moulding, injection, blow moulding and low foaming moulding combined pipe fitting moulds. The appearance of the pipe fitting mould has grooves to hold the raw material of the pipe. The pipe fitting mould has a concave mould. A concave mould with variable cavity composed of a combined base plate, a female mould component and a female mould combined card board, which is composed of a convex mould combined substrate, a convex mould component, a punch combined card board, a cavity cut-off component and a side cut combined board Of punches with variable cores. Coordinated changes of the convex and concave moulds of the pipe fitting mould and the auxiliary moulding system. Series of plastic parts of different shapes and sizes can be processed. There are many kinds of pipe fittings and processing methods in the plastic pipe fitting mould processing industry, and the structure of pipe fitting forming machines and pipe fitting products is complex and simple, and the types and structures of pipe fitting moulds are also diverse.
With the rapid development of science and technology industry, the production and processing technology of all walks of life has been improved. The strength and precision of pipe fitting moulds are continuously improved, and the application range of pipe fitting products is also expanding, and the proportion of pipe fitting products is increasing rapidly. A reasonably designed pipe fitting can often replace multiple traditional metal fittings, and the amount of pipe fitting products is also increasing. The plastic pipe fitting mould is a tool for producing pipe fittings. It consists of several sets of parts. This combination contains a moulding cavity. When injection moulding, the mould is clamped on the injection moulding machine, and the molten pipe is injected into the moulding cavity and in the cavity After cooling and shaping, the upper and lower moulds are separated, and the product is ejected from the mould cavity to leave the mould through the ejection system, and finally, the mould is closed for the next injection. The entire injection process is carried out in a cycle.
